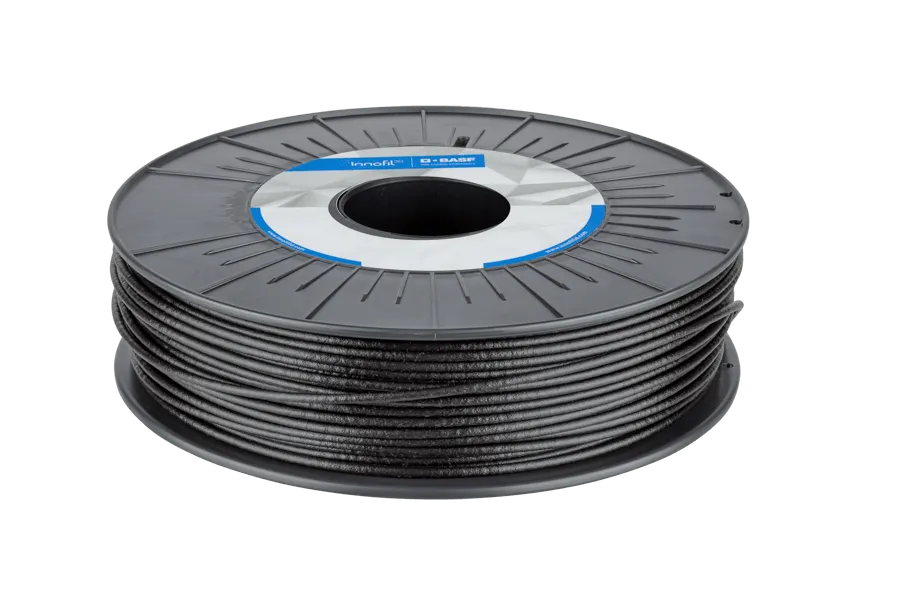

Name: Forward AM | Ultrafuse® PAHT CF15 - 750g
SKU: 1318322

Product Details ＋

Forward AM Material is proudly produced in Europe

This filament might not be compatible with the Ultimaker Material Station.

This is an abrasive filament that will wear down brass nozzles. We recommend upgrading to a steel or ruby nozzle.

For optimal performance and longevity for this filament. Keep in dry in a sealed desiccant bag or printdry when not in use. On dual extrusion Ultimakers, use with extruder 2 to reduce tension on the filament.

BASFT | Ultrafuse® PAHT CF15 Filament

Polyamide is a thermoplastic that is used in wide range applications in different industries. PAHT CF15 has a special formulation, which brings more dimensional stability and allows to work under 150°C continuous temperatures with a peak temperature of 180°C, which is impossible with standard PA. Thanks to the reinforcement with 15% carbon fiber stiffer products can be printed, which opens new doors for the printing of demanding applications.

Technical Specs

750 gr. spools with 2.85mm diameter
750 gr. spools with 1.75mm diameter

Print Settings

Print Speed 40 – 60 mm/sec
Nozzle temperature 260 – 280 °C
Nozzle: Hardened/Ruby Nozzle, ≥ 0.6 mm diameter
Bed temperature > 50 °C
Bed modification No, clean glass
Fan Speed 0%
Layer Height 0.2 – 0.4 mm

Key Properties

Higher chemical resistance than most PA grades
High-temperature resistance up to 150°C
Strong and stiff parts
High dimensional stability
Easy to process
Low moisture absorption

ESD Certification

This material has been tested to be ESD Safe. It is safe to use with applications that are sensitive to electrostatic discharge. Example: Jigs/Fixtures for electronics assembly.

Electrical Properties

Volume resistivity	IEC 62631-3-1	3.2E 07 Ωcm	-	1.6E 05 Ωcm
Surface resistivity	IEC 62631-3-2	9.7E 05 Ω	-	1.8E 06 Ω

Overview

PAHT CF15 combines high temperature and chemical resistance with extreme mechanical properties. Due to the high dimensional stability there will be hardly any shrinkage during printing. This ensures an easy print experience.

PAHT CF15 is a high-performance 3D printing filament that opens new application fields in FFF printing. In parallel to its advanced mechanical properties, dimensional stability and chemical resistance, it has very good processability.

It works in any FFF printer with a hardened nozzle.

In addition to that, it is compatible with BVOH, water-soluble support material and HIPS which allows printing complex geometries that work in challenging environments.

Printing Profiles

To print the best possible way with Forward AM filaments

Forward AM provides you with a large range of printing profiles for their materials based on different well-known printer manufacturers like Ultimaker, Raise3D and BCN3D
